    ​樓宇智能化屬於電氣領域,處於IFC標準中的專業領域層。在IFC4標準中定義為IfcElectricalDomain。IfcElectricalDomain支持的類型主要有IfcFlowTerminalType(終端設備類型)、IfcFlow SegmentType(終端分段類型)、IfcFlowFittingType(終端燈具類型)、IfcFlowStorageDeviceType(終端存儲設備類型)、IfcFlowControllerType(終端開關類型)、IfcDistributionControlElementType(配電控製類型)和IfcEnergyConversionDeviceType(能量轉換設備類型)。

    樓宇智能化屬於電氣領域,處於IFC標準中的專業領域層。在IFC4標準中定義為IfcElectricalDomain。IfcElectricalDomain支持的類型主要有IfcFlowTerminalType(終端設備類型)、IfcFlow SegmentType(終端分段類型)、IfcFlowFittingType(終端燈具類型)、IfcFlowStorageDeviceType(終端存儲設備類型)、IfcFlowControllerType(終端開關類型)、IfcDistributionControlElementType(配電控製類型)和IfcEnergyConversionDeviceType(能量轉換設備類型)。

    其中IfcFlowTerminalType定義的實體有Outlet(插座)、LightFixture(燈具)、Lamp(光源)、ElectricAppliance(電器設備)、AudioVisualApplication(音視頻設備)、CommunicationsAppliance(通訊設備)。樓宇智能化中的前端設備主要有攝像機,屬於音視頻設備,因此可以用AudioVisualApplication來表示,下麵對樓宇智能化中的前端設備進行基於IFC標準的數據描述。

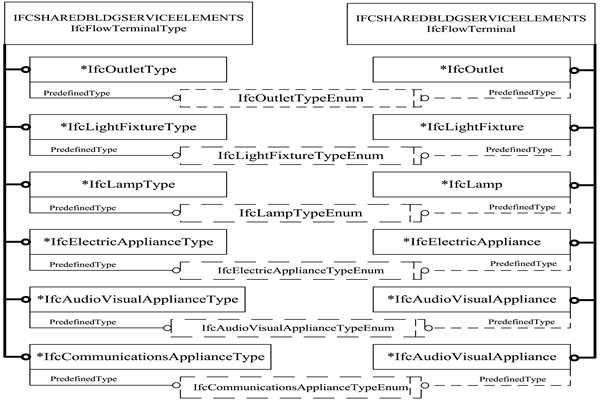

    AudioVisualApplication的Express-G圖表示如圖。

    樓宇智能化IFC的前端設備數據描述!(圖1)

    AudioVisualApplication的Express描述如下:

    ENTITY IfcAudioVisualApplianceType

    SUBTYPE OF IfcFlowTerminalType; //IfcAudioVisualApplianceType是IfcFlowTerminalType的子類型

    PredefinedType: IfcAudioVisualApplianceTypeEnum;

    WHERE  //形式限製

    CorrectPredefinedType: (PredefinedType <>

    IfcAudioVisualApplianceTypeEnum.USERDEFINED) OR((PredefinedType=

    IfcAudioVisualApplianceTypeEnum.USERDEFINED) AND EXISTS

    (SELF\IfcElementType.ElementType));

    END_ENTITY;

    AudioVisualApplication屬性間的繼承關係如下:

    ENTITY IfcAudioVisualApplianceType

    ENTITY IfcRoot

    GlobalId:       IfcGloballyUniqueId;

    OwnerHistory:     OPTIONAL IfcOwnerHistory;

    Name:         OPTIONAL IfcLabel;

    Description:      OPTIONAL IfcText;//定義

    IfcRoot的四個屬性

    ENTITY IfcObjectDefinition

    INVERSE //反轉屬性,明確定義實體之間“雙向”的一對多或多對多關係

    HasAssignments:    SET OF IfcRelAssigns FOR RelatedObjects;

    Nests:        SET [0:1] OF IfcRelNests FOR RelatedObjects;

    IsNestedBy:      SET OF IfcRelNests FOR RelatingObject;

    HasContext:      SET [0:1] OF IfcRelDeclares FOR RelatedDefinitions;

    IsDecomposedBy:    SET OF IfcRelAggregates

    FOR RelatingObject;

    Decomposes:      SET [0:1] OF IfcRelAggregates FOR RelatedObjects;

    HasAssociations:   SET OF IfcRelAssociates FOR RelatedObjects;

    ENTITY IfcTypeObject

    ApplicableOccurrence: OPTIONAL IfcIdentifier;

    HasPropertySets:   OPTIONAL SET [1:?]

    OF IfcPropertySetDefinition;

    INVERSE

    Types:        SET [0:1] OF IfcRelDefinesByType FOR RelatingType;

    ENTITY IfcTypeProduct

    RepresentationMaps:  OPTIONAL LIST [1:?]

    OF

    UNIQUE IfcRepresentationMap;

    Tag:         OPTIONAL IfcLabel;

    INVERSE

    ReferencedBy:     SET OF IfcRelAssignsTo Product FOR RelatingProduct;

    ENTITY IfcElementType

    ElementType:     OPTIONAL IfcLabel;

    ENTITY IfcDistributionElementType

    ENTITY IfcDistributionFlowElementType

    ENTITY IfcFlowTerminalType

    ENTITY IfcAudioVisualApplianceType

    PredefinedType:    IfcAudioVisualAppliance TypeEnum;

    END_ENTITY;
